Ford F-150 Off-Road Dixi
Description
Dixi is a new light that uses (10) high power Cree LEDs. “Dix” (pronounced Deece) is French for the number ten. In keeping with our whimsical product naming format, we came up with Dixi, pronounced Dicks-E.

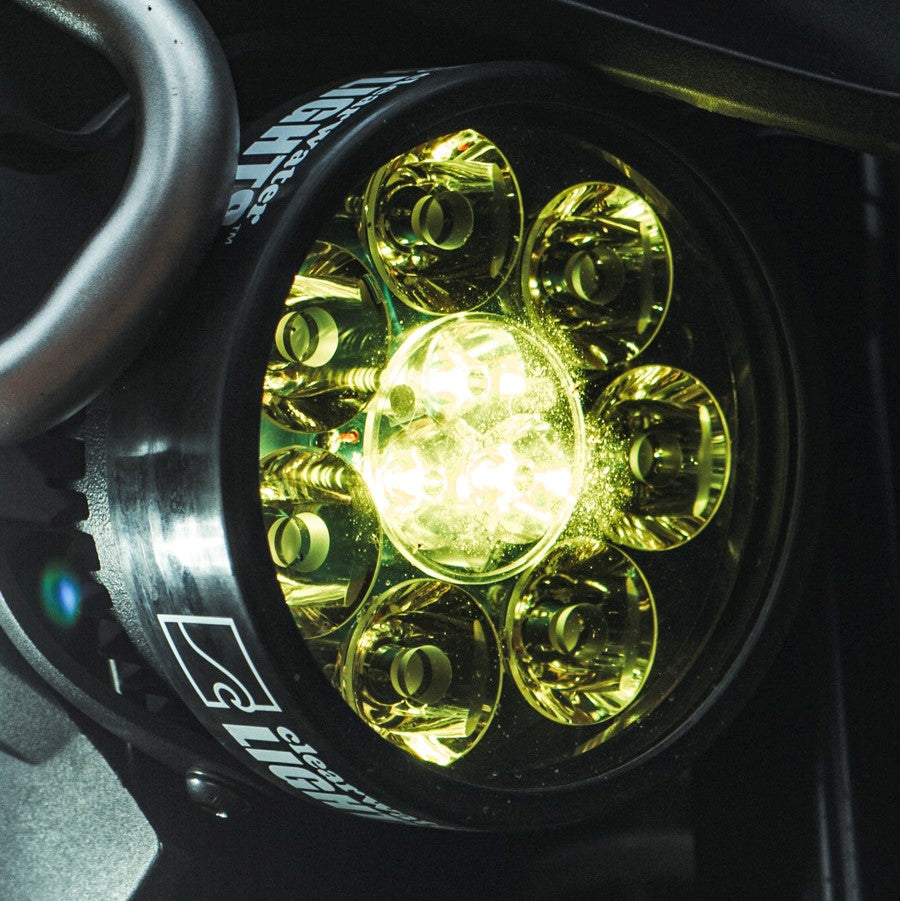

Dixi incorporates two different beam patterns that can be used. There are three LEDs in the center and seven LEDs around the outside. The outside group is basically a Sevina pin spotlight using seven 8 degree optics. The center three LEDs use a Darla optic which provides a driving beam. But, the center light is more powerful than a Darla as we use the control circuit from a Krista!
When combined on full power, Dixi produces over 10,000 lumens each, that's over 20,000 lumens per pair!

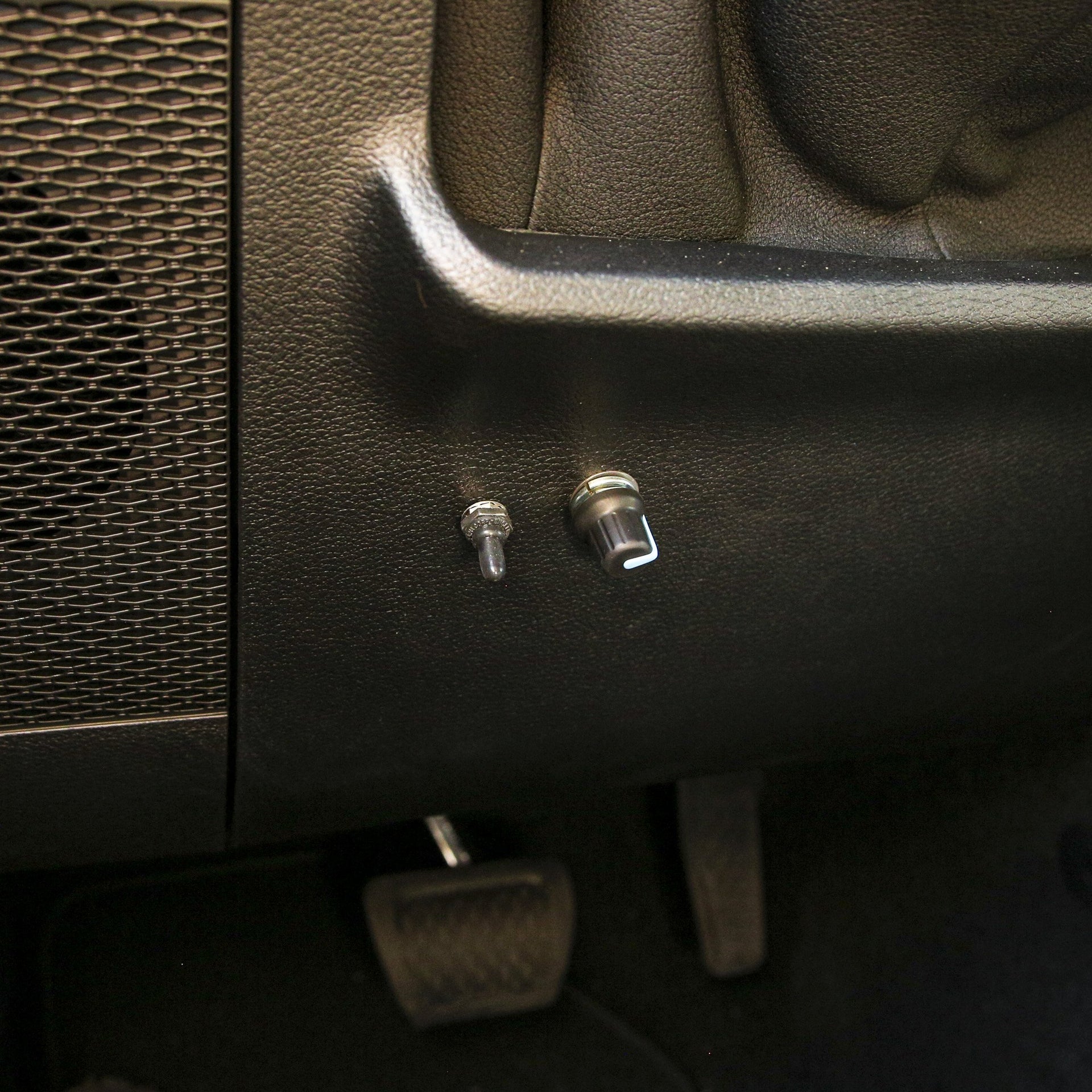

In the normal configuration, the center Darla optic has adjustable intensity via our rotary controller. The outer spot pattern is activated when the high beam headlight is activated. So, the inner light is adjustable when your low beam headlight is on.
Choose your optic (for the outer ring):

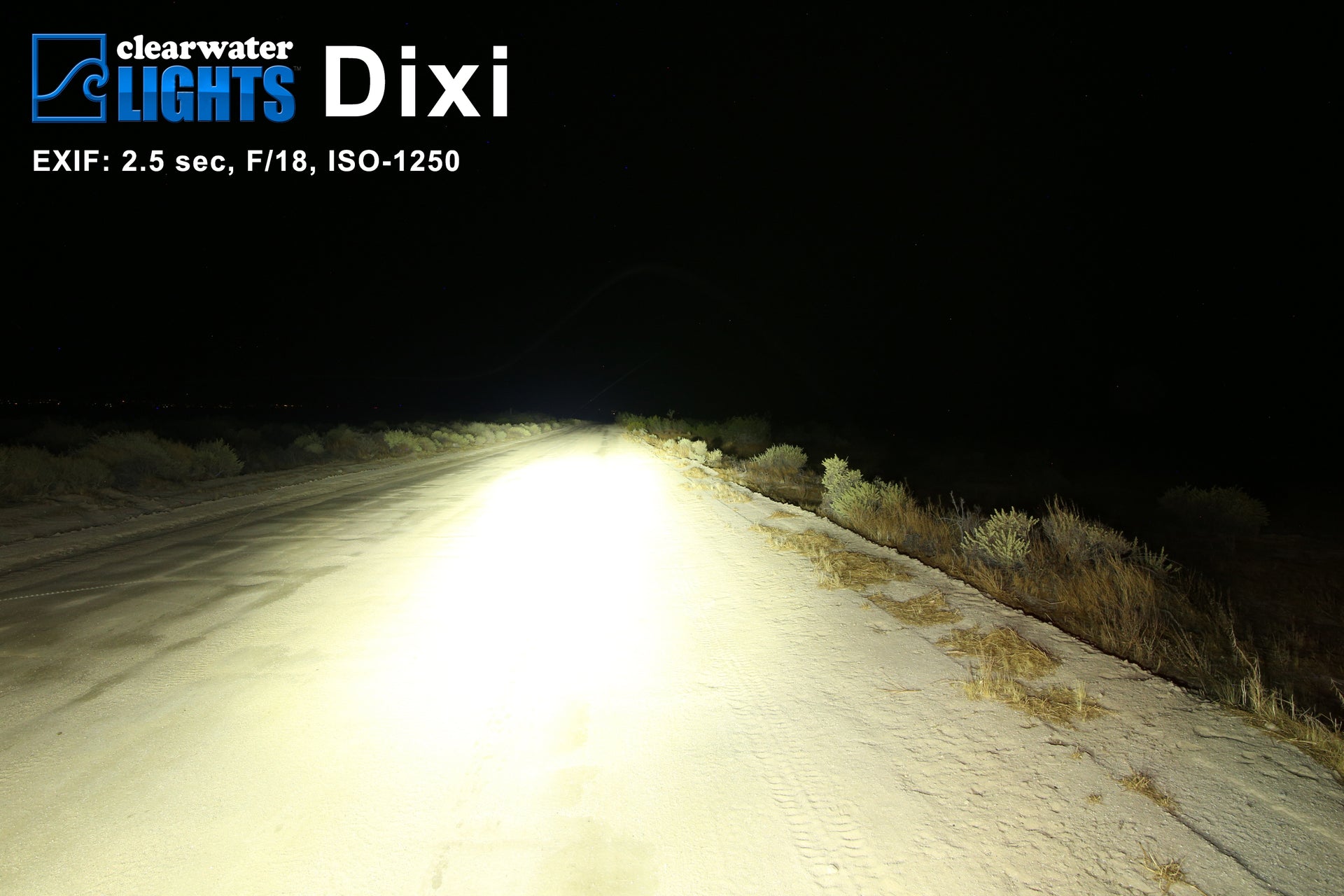

Spot – sends light far down the path in a narrow 8-degree spot beam
Fog – light is dispersed in a 150-degree wide and low beam
Combo – best of both worlds, both spot and fog in each light (fog x 4, spot x 3) as well as the inner cluster which utilizes a driving beam pattern
For more information about various light patterns and how they look projected down the road, check out the virtual Clearwater lights simulator HERE
Vehicle Harness Wiring Diagram/Install Guide: CLICK HERE
Specifications:
- Center beam 30 watts, 3000+ lumens, adjustable intensity
- Outer beam 70 watts, 7000+ lumens, on or off with high beam5.3" diameter
- 10,000+ total lumens each
- 36 ounces
- Fully dimmable
- Custom tooled optics
- CNC machined
Universal kit includes:
Pair of Dixi LED Lights
Wiring harness with proprietary adjustable control
Universal mounting brackets with stainless steel hardware
Selective yellow light covers
Perfect for:
- Night driving
- Backcountry
- Off-Road Vehicles
- Racing
